13.8V, 40A Switching Power Supply
Amateur radio has been somewhat slow to accept switching power supplies for powering communication equipment. This is a pity, because "switchers", as they are often called, offer very attractive features, like small size, low weight, high efficiency, and low heating. True, they are generally more complicated than linear power supplies, but this is easily compensated by the fact that they can be built for a lower cost.
Some early switchers produced an objectionable amount of RF noise, bringing the whole switching technology into bad reputation. But by proper design techniques and careful EMI filtering it is possible to build very quiet switchers.
In this article I will describe the construction of a switching power supply designed to power a complete ham station, with several radios and accessories. This power supply produces 13.8V regulated to better than 1%, at a continuous load current of up to 40A. It has current limiting, making it appropriate for direct connection to a 12V backup battery. If the current limit potentiometer is turned up, the power supply can deliver up to 60A on an intermittent basis, while maintaining regulation. No minimum load is required. The ripple on the output is about 20mV, and the efficiency is 88%. A cooling fan operates depending on the average current drawn, and a tricolor LED tells you if the voltage is normal, too high or too low. It produces no detectable RF noise at any frequency higher than the main switching frequency of 50kHz (I checked it with an antenna wire looped around the operating power supply, tuning my TS450 from 30kHz to 40MHz). And you get all this in a box that measures just 306 x 150 x 130mm, including all projections, and weighs only 2.8kg!
Interested? Heat up your soldering iron and read on!
Linear versus switching supplies
You all know how a typical linear power supply operates: A heavy transformer takes the line voltage and converts it into something slightly above the desired final voltage. Some diodes rectify it, a big filter capacitor smoothes out the DC, and a series pass transistor burns up the excess voltage, so you get the desired output. A simple control circuit drives the pass transistor to hold the output voltage constant. The circuit is simple and uses few parts, but several of these parts are big, heavy, and expensive. And the efficiency is usually only around 50%, often even lower. That produces a lot of heat, which must be removed by big heat sinks and fans.
The switching approach is totally different: The line voltage is directly rectified and filtered, resulting in about 300 or 150V DC (300 is more commonly used). This feeds a power oscillator which produces output at about 20 to 500 kHz. This relatively high frequency allows the use of a small, lightweight and low cost transformer to reduce the voltage. The output is then rectified and filtered. And now comes the most interesting feature: Instead of just burning up the excess energy, in the switching power supply the control circuit steers the power oscillator in such a way that it delivers just the amount of energy needed. So, very little energy is wasted, resulting in high efficiency (75 to 90%), almost no heating, and a much reduced electricity bill!
There are several different topologies for switchers in common use, and the first decision a designer must take is which of them to consider. Among the factors affecting the decision are the power level, the number of outputs needed, the range of input voltage to be accepted, the desired tradeoff between complexity, quality and cost, and many more. For this power supply I decided to use the half bridge forward converter design. This topology connects the power transformer to a bridge formed by two power transistors and two capacitors. It is reasonably simple, puts relatively low stress on the power transistors, and makes efficient use of the transformer's magnetic capabilities.
The second basic decision is which switching frequency to use. The present trend is to use ever higher frequencies. But by doing so it becomes more difficult to filter out the RF noise inevitably generated by the switching. So I decided to stay at a low switching frequency of only 25 kHz for the full cycle, which due to the frequency doubling effect of the rectifiers results in 50 kHz on the output filter.
For the main switching elements, bipolar transistors or MOSFETs can be used. Bipolars have lower conduction losses, while MOSFETs switch faster. As in this design I wanted to keep the RF noise at an absolute minimum, very fast switching was not desired, so I used bipolar transistors. But these tend to become too slow if the driving is heavier than necessary. So, if the transistors have to switch at varying current levels, the drive to them must also be varied. This is called proportional driving, and is used in this project.
The half bridge converter is best controlled by pulse width modulation. There are several ICs available for this exact purpose. I chose the 3524, which is very simple to use and easy to find. Any 3524 will do the job. It can be an LM3524, SG3524, etc.
This basically ends the big decisions. From now on, designing the circuit is a matter of calculating proper values for everything.
For the following explanation, refer to the schematic diagram. Print it out, so you can follow the description on the drawing.
Line voltage enters through a CEE-22 connector with included fuse and EMI filtering (P1). It is then passed through a 2-pole power switch, and an additional common mode noise filter (C1, L1, C2). Two NTC resistors limit the inrush current. A bridge rectifier delivers the power to a big electrolytic capacitor (C3), which works at the 300VDC level. The power oscillator is formed by Q1, Q2, the components near them, and the feedback and control transformer (T3). T2 and the associated components act as a primary current sensor. T1 is the power transformer, delivering about 20 V square wave to the Schottky rectifiers (D6..9). A toroidal inductor (L2) and a six-pack of low equivalent series resistance electrolytic capacitors form the main filter, while L3 and C23..24 are just there for additional ripple reduction. The 13.8V is delivered to the output through a string of ferrite beads with some small decoupling capacitors mounted directly on the output terminals.
The control circuit is a 3524 IC (U1), powered from an auxiliary rectifier (D17). The IC contains a voltage reference, oscillator, pulse width modulator, error amplifier, current sense amplifier, flip-flop and driving circuitry. It senses the output voltage and the current level, and through transistors Q3 and Q4 controls the power oscillator. C37, C35 and R23 are used to implement a full PID (proportional-integral-derivative) response in the control loop.
A quadruple operational amplifier (U2) is used for two auxiliary purposes: To control the cooling fan according to the average current level, and to drive the voltage indicating tricolor LED: It will glow green if the voltage is OK, orange if the voltage is too low and red if it is too high.
How this thing works
When the unit is powered up, the first event that happens is a current surge which charges C3. This surge is held at manageable levels by the two NTCs, which offer about 2.5ê each when cold, and later loose most of their resistance as they heat up.
As the operating voltage builds up on C3, R2 and R6 bias the two power transistors Q1 and Q2 into their active zone. They start conducting a few mA, but only for a very short time, because the positive feedback introduced by T3 quickly throws the system out of balance. One of the transistors receives an increased base current, coming from T3, while the other one sees its base drive reduced. It takes just a fraction of a microsecond to get one of the transistors saturated, and the other cut off. Which transistor will start first is unpredictable, but for this analysis let's suppose it is Q1. Notice that because the control circuit is not yet powered, Q3 and Q4 are off, so D12, D13 and D14 effectively isolate the 26-turn windings of T3, the result being that they don't play any role for now.
T1 is now seeing about 150V across its primary. This produces about +-20V on the secondary. The Schottky rectifiers rectify this, so L2 sees 20 V across it. This inductor will start taking an increasing current, which is reflected back to the primary side of T1. The primary current passes through the 1-turn winding of T3, forcing one-eight as much current to flow into the base of the transistor which is conducting. This current causes a voltage drop across R1 and R3, and this voltage is reflected back onto T3. After some time the ferrite core of T3 will saturate, and this will cause the base drive of Q1 to decrease sharply. Q1 will get out of conduction, and Q2 will start conducting. Now the flux in T3's core decreases, crosses zero, and increases in the other flow direction, until saturating the core again, shutting Q2 off and Q1 on. Meanwhile the current in L2 builds up, and the filter capacitors are charged.
Notice that for safe startup it is necessary that T3 saturates completely before T1 starts to do so. If this were not the case, the transistors would have to switch under a very high and potentially destructive current. Keep this in mind if for some reason you make changes to my design.
The power supply will oscillate freely for only a few cycles, because D17 is already charging C32 and C33, powering up the control circuit. As soon as this circuit gets enough voltage, it takes over the control of the power oscillator. Let's see how U1 does this:
We will start at rest time, when both power transistors are off. U1 leaves both of its outputs (pins 12 and 13) in high impedance. So Q3 and Q4 are biased into saturation by R15 and R16. Together with D13 and D14 they place a dead short on T3's control winding. This keeps the voltage across that transformer at zero, regardless of any currents that may be flowing in the windings. C12 and C13, which are still charged from previous conduction cycles, keep Q1 and Q2 biased to a negative voltage.
If now U1 decides that it is time to switch on Q1, it simply switches pin 12 to ground. This switches off Q4, ending the short circuit on T3. Through R14 and D12 about 15mA flow into the control winding center tap, returning to ground via Q3. This puts about 50mA into the base of Q1, which quickly switches on. Now the heavy collector current, which can be up to 8A at full load, adds up to the total current flowing in T3 and puts enough drive into Q1 to keep it saturated at that heavy current. Note that by this method the strong drive current for the power transistors comes from the collector current via T3, so the control circuit does not have to provide any substantial driving power!
If now U1 thinks that Q1 has been conducting long enough, it simply switches off pin12. Q4 starts conducting again, shorting out T3. The current in T3 is dumped into Q4, which may have to take up to 300mA. The voltage on T3 breaks down, and Q1 switches off. Some time later U1 will put pin 13 to ground, starting the conduction cycle for Q2.
U1 uses two input signals to decide what to do with its outputs. One is a sample of the output voltage, taken through R25 and nearby components, while the other is a current sample taken from the primary side by T2. This is a current transformer that produces 200 times less current from its secondary than what is put through its 1-turn primary. This current, about 40mA at full load, is put into R12, producing a maximum voltage drop of about 7V. This is rectified, the half of it is taken at the center tap, divided down by R13 and VR1 and smoothed by C31. If VR1 is properly adjusted, on the top of it you will get 200mV when the power supply is running at full load.
The 3524 pulse width modulation controller is an interesting beast. I suggest you take a manual of analog ICs from any of the manufacturers that make this chip, and read through the 3524's data sheet. But I know that you want me to explain how it works, so here I go:
An internal voltage reference puts 5V onto pin 16. R22 and R21 divide this down to 2.5V, and apply this to the noninverting input of the error amplifier. The inverting input gets the sample of the output voltage. With 13.8V on the output, and VR2 properly set, you are putting 2.5V into pin 1.
The error amplifier is a transconductance amplifier with 5Mê output impedance. Its frequency and phase response, and its gain, are set by R23 and C35.
A second amplifier, specially included for current limiting purposes, has its inputs at pins 4 and 5. This amplifier can be ground-referenced, as done in this circuit, and has an internal offset of 200mV. That means that it will pull down the main error amplifier's output if the difference between pin 4 and pin 5 reaches 200 mV.
The chip contains an internal oscillator, whose frequency is set by R24 and C36 to approximately 50kHz. The sawtooth output of this oscillator is connected to an internal comparator, which has its other input internally connected to the output of the error amplifier. The result of this is that the output of the comparator will carry a square wave whose duty cycle depends on the DC voltage at the output of the error amplifier.
Finally, an internal flip-flop distributes the resulting variable length square pulses among the two outputs, which are uncommitted transistors. In this design, the emitters of those transistors (pins 11 and 14) are grounded, while the collectors drive Q3 and Q4.
During operation at medium to high load, the duty cycle is about 70%. That means that at the cathodes of the Schottky rectifiers you will have a square wave that stays at about 20V for some 14æs, and then slightly below ground level for 6us. L2, which has its other end at nearly constant 13.8V, will therefore see about 6V for 14us, followed by -14V for the rest of the time. Given its inductance of about 20uH, the current in L2 will increase by about 4A during each conduction cycle, and decrease by that same amount during rest time. As long as the current drawn from the power supply is more than 2A, the current in L2 will never stop completely. For example, if 20A are drawn, the current in L2 will vary between about 18 and 22A. As the ripple current stays basically constant while operating at up to the maximum current of the power supply, the filter capacitors C17 to C22 are never exposed to more than about 1.5A RMS total ripple current, assuring them a very long lifetime. This is an advantage over some other types of switching power supplies, in which the ripple current is much higher, forcing the designer to use more expensive capacitors or to accept reduced lifetime.
If the load is less than about 2A, the current flow in L2 is no longer continuous. The duty cycle of the power transistors starts to drop, until at zero load the duty cycle almost becomes zero too.
C37 serves several purposes. For higher frequencies it couples the first filter stage (L2 and C17..22) to the error amplifier, while for lower frequencies and DC the output of the supply is sampled. This is necessary because each filter stage introduces 180 degrees of phase shift at the higher frequencies, so after two stages the phase shift goes through a full 360 degrees, making it impossible to stabilize the control loop without additional circuitry. But for DC it is good to sample the output, in order to compensate for the voltage drop in L3. So I chose this arrangement.
C37 was dimensioned to give the error amplifier a nice PID response, together with R23 and C35. This affords the best possible transient behavior and unconditional stability. In addition, C37 provides some measure of soft starting, so the voltage does not overshoot too much when switching on the power supply.
R34 and C38 average out the current level over a period of about 2 minutes. U2C amplifies the resulting voltage by a settable amount, and U2D acts as a Schmitt trigger to switch the fan cleanly on and off when the current average crosses the trigger level set by VR3. R39 limits the speed of the fan to a rather low value which is more than enough to keep the power supply cool. At this low speed the fan produces almost no noise, and can be expected to last longer than its owner..
U2A and U2B control the voltage indicator LED. They operate as follows: An independent voltage reference (U3) delivers 5V to the noninverting inputs of the opamps. If the power supply's output voltage is below 13.5V, both pin 2 and pin 6 of U2 will be below 5V. So the outputs of these opamps will both be high, lighting both the green and the red parts of the dual LED. It will glow orange, indicating low voltage.
When the voltage is near 13.8V, pin 2 will still be below 5V, while pin 6 will be above 5V. This switches the red LED side off, leaving the LED glowing green, indicating correct voltage.
When the voltage rises to more than 14.1V, pin 2 will rise above 5V. Pin 1 will go down, shutting off the green LED half, and pulling low pin 6 via D18. This will switch on the red LED side, so the tricolor LED now glows red, giving overvoltage alarm.
If you use reasonably accurate resistors, this circuit needs no adjustment to operate well.
Snubbering and EMI filtering
No transformer is perfect. Each winding has some inductance that is not coupled to the others. And there is the magnetizing current, which in small transformers can be a considerable part of the total current. At the end of a conduction cycle, there is a strong current flowing in T1. After switching the power transistors off, some means must be provided to discharge the energy stored in the magnetic field of the core, and in the leakage inductances. D3 and D5 were included for this purpose. They will recover most of this energy and dump it into C3. Another portion will flow through the Schottky diodes into L2, but this part cannot be more than whatever current is flowing in L2 at the moment of switchoff.
A problem arises if the magnetizing current is bigger than the actual load current, a situation that can happen especially during startup. Also it must be taken into account that diodes, even fast ones, take some time to switch, and the transformer cannot wait to start dumping its energy. So some absorbing RC networks have to be included. They are commonly called "snubbers".
R9 and C14 form the primary snubber, which absorbs energy during the switching of D3, D5, Q1 and Q2. On the secondary side, R10, C15, R11 and C16 protect the Schottky rectifiers against inductive spikes.
In this design I dimensioned these components in such a way that they absorb considerably more energy than really necessary for protecting the semiconductors. This causes some additional loss, but smoothes the switching flanks, greatly reducing the RF energy generated. This is the first step to make a ham-friendly switching power supply!
Of course, some RF noise is still generated. It must be cleaned up by other methods. Some of them are obvious from the schematic, others are not. The AC input is heavily filtered, first by the filter inside the CEE-22 connector, which is effective against both common mode and differential mode noise, and then by C1-L1-C2, which forms an additional common mode filter. The two NTCs also add very slightly to the noise filtering. Between C3 and the power oscillator two ferrite beads perform a critical noise absorbing task. These are Amidon beads, made from 73-type material, which unlike most ferrites has good absorption characteristics even in the lower HF range.
On the output side, L2 already absorbs most of the noise. It is wound on a high permeability iron powder toroid, which is very lossy in the HF range. So it absorbs most of the HF energy reaching it. The main filter capacitors are of the low equivalent series resistance type. This not only reduces the ripple on the output, but also improves their usefulness as noise filters.
L3 is another noise absorber. To minimize capacitive coupling over it, I wound it on a ferrite solenoid instead of a toroid, so the input windings are far apart from the output ones. The ferrite used is of the type that starts absorbing at HF, so this coil like the others not only blocks, but also absorbs RF energy. Finally, the output leads are passed through a full dozen of 73-material ferrite beads. The filtering is completed by proper bypassing of the output leads to the cabinet. It should be noted here that the ground on the printed circuit board is floating, but the enclosure is connected to earth. This arrangement reduces HF current flow on the enclosure, which would lead the box to act as a noise radiator instead of a shield! The power transistors and diodes are mounted in a special way too, for the same reason. This will be described in the construction section.
Running on 110V
I live in a country where the mains supply is 220V, 50Hz, so I designed my power supply for this voltage. It will accept about 190 to 250V. But switching power supplies are very easy to convert from 220V to 110V, and it is even very easy to make them switchable between the two voltages.
This drawing shows how to do it. Basically, you have to split C3 into two parts, connecting one side of the AC line to the junction of the capacitors. This makes D1 work as a voltage doubler. If you want only 110V operation, use the circuit in figure 2 A. As two diodes of the bridge are not needed for 110V, they were eliminated, leaving just two simple diodes.
If you want your power supply to be switchable between 220V and 110V, you need to add a few more components. Part B of figure 2 shows how to connect a switch to run the supply from either voltage. In this case, voltage-equalizing resistors are needed across the capacitors, as shown in the diagram.
For 110V operation the fuse must be rated for 8 or 10A. The rest of the components can stay the same, although you may replace the NTCs by lower resistance ones, in order to maintain best efficiency. A pair of 1.3R NTCs should be about optimum for 110V. If you make the switchable version, stay with the 2.5R NTCs, because they are needed for 220V operation.
If you choose one of these options, you will have to make the necessary modifications to the parts list when you go shopping. But you will not need to modify the printed circuit board other than drilling an additional hole, because anyway C3 is not mounted on the board.
Finding the parts
You definitely cannot find all of the parts for this project at your local TV spare parts store. You will have to order some of them by mail, unless you live near a big industrial distributor willing to sell in small quantities. But this is not too bad. Two mail orders plus some local shopping should get you everything you need.
The biggest problem for most home builders is the magnetics. To keep things simple, I used AMIDON cores, because this company accepts mail orders for small quantities. The only exceptions are L1 and L3, which I took out of my junk box. But both of these are uncritical, so nothing bad will happen if you use parts that are quite different from
I found most of the other parts at local electronic suppliers. And I live in Chile, where electronic parts are not too easy to come by. So anyone living in more industrialized countries should have little trouble getting these parts. But there are a few components which probably will have to be ordered from a mayor distributor. Among these are the power transistors, the Schottky rectifiers, the CEE-22 filtered and fused connector, the NTCs, and the low ESR electrolytics. One very attractive supplier for these things is RS Components, because this company sells almost everything in single quantities, and has sales offices all over the world. Most of the difficult parts for my power supply came from RS. The parts list gives RS Components' part numbers for some items. I suggest you get a catalog from them. If you want, you can order almost all the parts for this project from RS. Other good suppliers include Farnell, Newark, Spoerle (in Germany) and many more.
Here is a parts list. For some of the more specific devices, RS stock numbers are given.
Please do not ask me to get the parts for you. I'm glad to give you any advise and help needed to complete this project, but I do not provide parts for it.
Winding the transformers and coils
First things first. Let's start with T1, the main power transformer, which can be considered the heart of this circuit. I built T1 using a tape winding technique, and stacking four pairs of ferrite E cores to get the necessary magnetic capabilities. The manufacture of this transformer requires some handiwork, but it is worth the effort. I will describe the process in detail, so you can exactly follow the steps I took. If you prefer and have enough knowledge, of course you can go your own route.
Because four cores are stacked, there is no factory-made bobbin available for this transformer. So I made a paper bobbin. I wound the transformer using copper strips interleaved with Mylar sheet, because the thick wire necessary for the heavy current would be impossible to bend around the sharp corners of the bobbin. Instead of using a lot of thin wires in parallel, it is better to take this in a consequent manner and use copper tape. The whole assembly was sealed in epoxy resin and the magnetic cores glued in with epoxy. This is how you can do it:
First cut a piece of hardwood to serve as the winding core. As the center legs of the four stacked cores measure 62 x 12mm, this wood block must be 63mm wide and 12.5mm thick, to allow for some playroom. The length of the block can be around 100mm, or whatever you prefer. The height of the bobbin will be 28mm, so give theblock enough length to hold it with the bobbin in place. If you have a low speed lathe, winding machine, or similar, cut the wood block to such a length that you can mount it in the machine. I used a belt sander to bring the wood block to the exact dimensions. Try to be precise. If the block is too big, you will be wasting valuablewinding space, running the risk of not being able to fit the windings. And if the block comes out too small, your finished winding assembly may not fit the ferrite cores, making it unusable.
Now wrap the wood block in one layer of plastic film, of the kind used in the kitchen to preserve food. This material is an excellent demoulding agent. Cut a strip of strong packing paper, 28mm wide and about 1m long. Mix some 5-minute epoxy glue (I used the type sold in airplane modelling shops, which comes in good sized bottles), and apply a layer of epoxy to the paper strip. Now wind the strip very tightly around the plastic-wrapped wood block, to make the bobbin core. It will be about 6 layers of paper. Wrap another sheet of plastic film around your work, and press it between two wooden blocks hold together with rubber bands, so the long sides of the bobbin become flat and nice. Now get permission from your wife, mother, or whoever reigns in the kitchen, and place the assembly in the oven for about 15 minutes at 50øC. The epoxy sets much quicker and somewhat stronger at that temperature.
Now you will need some copper sheet 0.1mm thick, and some Mylar sheet of a similar thickness. Cut the copper in strips 22mm wide, and the Mylar in strips 28mm wide. If you can make long strips, say 2m, this is an advantage, otherwise you will have to solder individual copper strips together. In total, you will need about 7m of copper tape and slightly less Mylar tape.
When you are ready with this, your epoxy has had ample time to harden, so rescue your bobbin from the oven and go on. Take off the rubber bands, the outer wood blocks, and the outer plastic wrapping (don't worry if it doesn't come off completely). Do not remove the plastic wrapping that separates the bobbin from the wood. You now have your wrapped wooden core and the epoxy-paper bobbin on it.
Take a 60mm piece of #13 bare copper wire. Wrap the end of one of your copper strips around the wire, so that the wire protrudes only to one side from the copper sheet loop. Use a big soldering iron to flow some solder into the junction. Try to avoid getting solder on the outside, because this may later puncture through the Mylar insulation.
Now the winding starts. Position the copper wire on one narrow side of the bobbin, so that the copper strip is centered on the width of the bobbin, leaving 3mm room on each side. Stick the strip start to the bobbin with some thin adhesive tape. Position the start of one piece of Mylar strip so that it covers all the copper and is centered on the bobbin, and tape it in place. Now wind 15 turns of this copper-Mylar sandwich, as tightly as you can, keeping the Mylar aligned with the bobbin sides, and the copper nicely centered. Don't loose your grip, or the whole thing will spring apart. If your copper strip is not long enough, fix everything with rubber bands or a clamp, and solder another copper strip to the end of the short one, allowing 2mm of overlap. Before doing this, cut the first copper sheet to a length such that the joint will be on one of the narrow sides of the bobbin, because here you have space, while the wide sides will have to fit inside the ferrite core's window. If the Mylar strip runs out, just use adhesive tape to add another strip. Make the overlap 5mm, to avoid risk of creepage between the sheets, and also try to locate the joint on a narrow side of the bobbin.
When the 15 turns are complete, cut the copper strip to such a length that the second terminal will be on the same narrow side of the bobbin as the first terminal (the one you have already placed). Solder the second terminal (another 60mm piece of bare copper wire) to the strip, position it, and wind three or four layers of Mylar, to make a safe insulation between the primary and secondary.
If you think this is a messy business, you are right. But it's fun too! The secondary is just a little bit messier: It is wound with a five-layer sandwich! Four layers of copper and the Mylar topping layer. But it's only four turns total, so take a deep breath and do it!
First solder the four copper strips together around a piece of #13 copper wire. Don't be overly worried if the outcome is not very clean; mine was quite a mess too, and it worked well on the first try. Just be sure you don't create sharp edges or pointed solder mounds, because these may damage the insulation.
Now position the start of your secondary conductor in such a way that the pin will come out to the same side as those of the primary, but on the other narrow side of the coil assembly. So you will get a transformer that has its primary leads on one extreme and the secondary on the other, and will fit the printed circuit board nicely.
Wind two turns, solder the center tap wire between the four copper strips, wind the other two turns, solder the last pin, wind a finishing layer of Mylar and fix it in place with adhesive tape. Uff! This was the worst part. If you reached this spot, you will have no problem building the rest of this project!
What you have now is a springy, messy coil assembly that will fall apart if you let it go. You have to seal it. This is easy to do:
Wrap your two wooden blocks, the same you used to press the bobbin, in plastic film. Place them against the sides of the coil assembly, and apply hard pressure, using a clamp or a lot of rubber bands, so that the long sides of the coil straighten out completely, and any slack is displaced to the narrow sides. Now mix a fair quantity of epoxy glue, place the coil assembly so that the pins face up, and let the epoxy run into the coil. Continue supplying epoxy until it starts to set. If it drips out from the other side, no problem. Just don't do this work over your uncle's persian rug. When the epoxy doesn't flow any longer, turn over the coil assembly, mix a new batch of epoxy, and fill the other side completely, forming a smooth surface. As the downside is now sealed, the epoxy will not flow out there. And when this epoxy has set, turn the assembly over again, mix epoxy, and apply it to form a smooth surface there. The idea is to replace all the air between copper and Mylar sheets by epoxy, and specially to fill the room left by the copper strip, which is narrower than the Mylar. This filling is necessary both for mechanical and for electric safety reasons.
Now convince your kitchen's monarch that this devilish thing will add a nice scent to the next apple pie, and place it in the oven again. Let the epoxy harden completely, then remove the coil from the oven, remove the clamp, rubber bands, wooden blocks, wooden core and all remains of plastic film.. And now comes the big WOW!!! You will be surprised how your messy and springy assembly changed into a very robust, hard, strong and nice coil!
Now test-fit the ferrite cores. See if they can be installed easily, so that each pair of facing E cores gets in intimate contact without pressing on the winding. If everything is right, the winding should have some playroom in the assembled core. But it is easy to get too much epoxy on the coil. If this happened to you, just take a file and work the epoxy down so that it doesn't disturb the ferrite. The ferrite core MUST close properly, otherwise you will later burn out the power transistors!
When the sizes fit, prepare some epoxy (again...!), apply a very thin layer to all contact faces of the ferrite cores and mount them onto the coil assembly. You can hold them in place with adhesive tape until the epoxy sets. If you dare interrupting in the kitchen for a third time, use the oven to quick up the hardening! The last thing you have to do is bending the copper wires into the proper shape to fit the printed circuit board holes. Be sure that on the secondary winding the center tap is actually in the center position! The polarity of the other pins doesn't matter. This completes
the manufacture of T1.
All the other transformers and coils are just child's play after making T1. The current sense transformer T2 has a lot of turns, but there is absolutely no need to wind them nicely side-by-side. You can use a winding machine with turns counter, or you can just wind it by hand. Get some #36 or other thin enameled wire, solder the end of it to one of the extreme pins of the EE24-25-B bobbin, and wind 100 turns. Don't worry if your winding is criss-cross and ugly, and don't feel guilty if you loose count and wind a few turns more or less. As long as you don't overdo it, it will just affect the position of VR1 when you align the completed power supply later. Solder the wire tothe center pin of the same side, then wind another 100 turns in the same sense. Solder to the other extreme pin on the same bobbin side, and apply one or two layers of Mylar, just to protect the thin wire.
Now take a piece of #15 plastic insulated cable, wind one single turn over the Mylar and solder the two ends of the cable to the two extreme pins of the other side of the bobbin. It doesn't matter which end goes to which side. Install the EA77-250 core with a small amount of epoxy cement, and T2 is ready.
T3 is made using the same type of bobbin and core as T2. First you wind 26 turns of #27 enameled wire. The 26 turns fit nicely in a single layer. Wind a one layer of Mylar sheet, then put on the next 26 turns. Bring the wires out to one side of the bobbin in such a way that they will not be too close to the other windings. Wind 3 layers of Mylar tape, to give a safe insulation between primary and secondary. Now, wind 8 turns of #20 wire, and solder the ends to the bobbin pins. Look at the printed circuit board drawing to understand which wire to solder to which pin. Wind a single layer of Mylar, then make the other 8-turn winding over the first one. This will leave a space at one side of the bobbin which is big enough to take the single turn of #15 plastic insulated cable, which completes the assembly. Now glue the core in place with epoxy cement, and T3 is ready!
L2 is wound on an Amidon T-157-26 iron powder toroid core. As it is too difficult to bend thick wire through a toroid, and tape winding it is not practical either, I chose to make this coil with 10 pieces of #16 enameled wire in parallel. Cut the wires to about 1.5m length, and twist them together. Then insert the bundle into the core, and starting from the middle of the wire bundle, wind 7 turns, using half of the core's circumference. Now wind the other 7 turns, starting from the middle towards the other end of the wire bundle. The 15th turn is the one you made when you inserted the wire bundle into the core! You will not be able to make a beautiful, nice winding, as the total of 150 wires passing through the toroid is too much to fit them in a single layer. But this doesn't matter at all, as long as you get 15 loops of the wire bundle through the toroid's hole, and there is plenty of space for this.
To make L3 you must first get a suitable core. I used a fraction of an old ferrite antenna rod, which broke into several pieces when I let it fall down... So, this is the recipe: Take an old ferrite antenna rod of about 10mm diameter, throw it out of the window, go pick up the pieces and select one that is about 50mm long! If you live in a 40th floor, better don't use the window method. Instead, break the rod in some more controlled way. You can't wind L3 on a bag of ferrite dust!
The winding itself is easy enough: Just wind 10 bifiliar turns of #11 enameled wire. This wire is quite stiff, but it is still no problem to handle. I suggest you wind the coil on a 10mm drill bit, then spring it open and place it on the ferrite core. Otherwise the ferrite could be cracked. Fix the core in the winding with some epoxy. Bend the wires in such a way that all four of them look down with the core straight up. That's the position L3 is mounted on the PCB.
Making the printed circuit board
The exact size of the board is 120 x 272mm. It must be made from good quality single-sided glass epoxy board. Pertinax material is unsuitable for two reasons: The heavy components would stress it too much, and the copper adhesion is not good enough for the heavy soldering required. This high resolution GIF image provides the copper pattern for this board, as seen from the components side. Note that many browsers cannot directly open this image due to lack of memory, as this is a 20 megapixel drawing. If you have this problem, right-click on the link, save it to your hard disk, then open it using a good image viewer or editor.
I suggest you make a photographic reproduction of the design on Kodalith or similar high-contrast film, adjusting it to the exact size. Then make the board using either presensitized board material, or using untreated board and some POSITIV-20 or similar photoresist varnish.
You can of course make the board by some simpler method like ironing on a photocopy, but I urge you to take the photographic approach. The better quality is definitely worth it! I asked a professional photographer and friend for help, and he took less than a hour to produce a professional quality photographic mask from my original inkjet printout! Two hours later, my board was ready.
Most of the holes are 0.8mm diameter. Others are 1mm, and a few are bigger. My technique is first drilling everything with a 0.8mm dentist's diamond drill, then measuring the pins of the bigger components and enlarging the holes for them.
Assembling the board
This is probably the easiest step. Using the parts placement guide, install and solder all of the parts except for Q1, Q2, and D6..9. Before installing D1, you must fashion a simple heatsink from a 30 x 80mm piece of 1mm thick aluminum sheet, bent into U shape. Drill a hole into it and screw it onto the rectifier bridge, using a locking washer. Then solder the D1 into the board.
All of the parts are mounted flush against the board, as it is not good to have overly long leads. There are two cable jumpers on the board, drawn as straight lines on the components placement diagram. The short one can be made from a clipped component lead, while the longer one is made from a piece of thin hookup cable.
Do not use IC sockets!!! These are an invention of the electronician's devil! They introduce additional contact resistance, inductance and capacitance, dramatically reduce the IC's cooling through the board, and cause trouble later when the IC pins oxidize, or the chips simply start falling out of the sockets. Don't tell me that you use good quality sockets. They do exist, they are very expensive, but they cause much the same problems. Keep in mind that modern ICs are made to be soldered! The tinned pins can be soldered easily and safely, but even in gold-plated sockets those tin-plated pins oxidize, insulating themselves. I'm warning you so extensively because my job involves repairing electronic equipment, and I can tell you that more than half of all problems are caused by bad contacts, many of them in IC sockets!
Enclosure and final assembly
I have never liked using ready-made enclosures for my projects. It's easy to make a custom box, and it will fit the electronics much better than anything you can buy. This project was no exception, and so I made my own box for it. But you are living in a free world, so do it however you want...! I will not provide complete plans, but instead just outline my box design:
Two 3mm aluminum plates, measuring 300 x 120mm, are used as the front and rear walls. They are screwed to the fan, the PCB, and to a 120mm long spreader tube of 6mm diameter, so that these parts become integral to the structure. The connections between the PCB, aluminum plates and fan are made with small pieces of 10 x 10mm aluminum angle stock. The assembly is surprisingly rigid!
The top and bottom covers are made from 1mm aluminum sheet and measure 126 x 300mm. The bottom cover has a hole for taking the center mount of the PCB.The side covers are cut from wire mesh to allow unrestricted air flow, and measure 122 x 126mm. The panels are held together by 10 x 10mm aluminum angle stock, which runs along all edges, and by small sheet metal screws. But these covers are not installed until the power supply is complete, tested and adjusted. I painted all the panels flat black on the outside, which looks nice together with the anodized aluminum angle stock. But I kept the edges and insides free of paint, in order to get proper electrical contact between the panels, and shielding action.
The components that are external to the PCB (P1, SW1, C3, the LED, and the output screw block) are mounted to the front and rear panels. Q1 and Q2 are screwed to the rear panel, using M3 nylon screws and 3mm thick ceramic insulators. These thick insulators were used not only for safety reasons, but mainly because they reduce the capacitive coupling of the transistors to the enclosure. This is very important, because if the unwanted capacities at this place were significant, the switching spikes would be coupled to the enclosure, causing RF current to flow on it and noise to be radiated! It is of little use to filter the input and output leads, if you make your shield radiate the noise by using too thin insulators for the noise-generating transistors!
Do not use metal screws with plastic washers, because this approach does not give enough safety margin to operate at line voltage. If you dislike nylon screws, a good alternative are steel clamps that press onto the plastic body of the transistors.
The Schottky diodes are mounted using the same kind of insulators and screws, but there is a heat spreader, made from 6mm aluminum plate, between those insulators and the case. All surfaces requiring thermal contact are covered with heat transfer compound before assembly. When installing the diodes and transistors, first do all the mechanical assembly, then solder the pins. Otherwise you could stress them too much while fastening the screws.
All cable connections are made next, and the output filter is assembled by sliding the ferrite beads over the output cables and soldering the bypass capacitors C25..30. Be sure to use a nice thick cable for the output! 40A continuous duty is no joke. I used a cable that has 4mm copper diameter, plus plastic insulation. It was a surplus from the installation of an electric winch in my 4WD vehicle. That cable is still a bit small for the winch, but fine for this power supply!

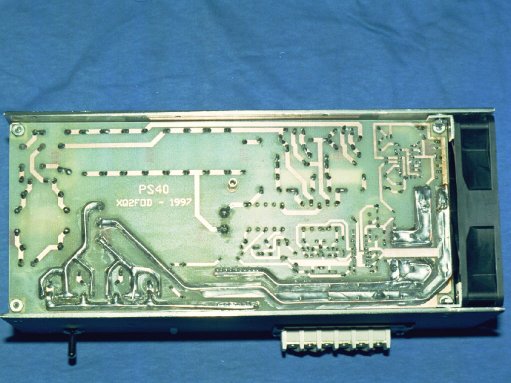

Now you will need a big soldering iron (100 to 150 Watt) and a lot of solder. The tracks on the secondary side cannot be trusted to carry the 40 or 60A of this supply without some help! The necessary help comes in form of some lengths of #13 bare copper wire. Cut and bend it to fit the shape of all the high-current paths. Now take your big and very hot soldering iron, and flow generous amounts of solder onto all of those tracks, so that the reinforcing wire becomes buried in the solder. At the end, you will have tracks in which the copper wire does most of the conduction, while the solder couples the generated loss heat to the PCB, which dissipates it. When you are ready with this task, your board will look terrible with all that molten, burned and blackened flux residue! But don't despair: Place the power supply in such a position that any liquid on the solder side of the board can drip off, and now take a small paintbrush, a bottle of alcohol, and applying generous amounts of this magic liquid brush all of the ugly black rosin dirt away! You will be surprised at how easy this is, and at how nice the board looks after this treatment! This photo shows how mine looked after the alcohol bath.
As the air flow from the fan will slightly shake the thin cables (those connecting the LED, and the jumpers), it is a good idea to place some drops of hot-melt glue at those places where these cables enter the board. This will prevent fatigue and breakage of these cables. Hot-melt glue is also an excellent material for fixing anything that would otherwise rattle, like ferrite beads.
Testing and adjusting
At this time your power supply should be functional. If you have very big self-confidence, or if you like surprises and enjoy fireworks, go ahead and plug it in! But for everyone else, I would recommend this approach:
First, do a thorough visual check. Set the three potentiometers to mid position. Check that there is no continuity between the AC input and ground, between the AC input and the DC output, or between the DC output and chassis ground.
Connect a variable voltage supply (you need 12 to 15V for the tests) to the output leads, without plugging the switcher to the AC line. First you should see the LED come up. Play with the voltage fed into your project to see how the LED changes color. If this works, you will at least get a confidence boost!
If you have a dual-channel oscilloscope, connect its two channels over the base-emitter junctions of the power transistors. With the voltage at about 12V, you should see small pulses with opposed phases. As you increase the voltage, suddenly these pulses will disappear. If you want, you can preadjust VR2 by setting your lab power supply to 13.8V and then setting VR2 just to where the pulses disappear. Now it's time to start up the switcher. Remove your lab supply, remove the oscilloscope leads, and connect the beast to the AC line in series with a 60 Watt light bulb. This technique will avoid most or all damage if something is wrong. Connect a voltmeter to the output, switch on your baby and see what happens! If everything is right, the bulb will light up, then slowly turn off, while the power supply starts up and delivers about 13.8V.
Now, connect a load of about 2A to the output. A car bulb is very practical for this. At this load level, probably the bulb in the AC line will glow, while the voltage on the output may be 13.8V or somewhat below. It depends on the specific current level drawn by your test load.
If so far everything is OK, the big moment comes: Remove the bulb from the AC circuit! Now startup of the supply should be fast, and you can connect a heavier load to it. With some load of 2 to 10A connected (the value is uncritical, given the good regulation of this supply), adjust VR2 so that you get exactly 13.8V at the output.
Next comes the current sensor adjustment. For this you need a load that draws 40A! You can make it by connecting a lot of car bulbs in parallel, or you can use some resistance wire to build a big power resistor. I made a 13.8V, 550W heater to test this supply! Connect that load, and adjust VR1 to such a position that the output voltage is just at the limit of breaking down.
The last adjustment is that of the fan trigger. Connect a 65W car headlight or similar load, which will consume about 5A. Leave it running for several minutes, then move VR3 to the point where the fan switches on. Now check out the trigger function by changing the load several times between about 2 and 10 A. The fan should switch off and on a half to one minute after each load change. Eventually you may have to retouch VR3 until you get the fan to switch on at no more than 7A continuous load, and switch off at 4A or so.
The last test to do is to run the power supply at full load for a hour or two. If it still doesn't burn up, you did a good job building it!!! Complete the assembly of the enclosure, stick some self-adhesive rubber pads to the downside, and you are R E A D Y !!!!!
And if it doesn't work?
If you are building this project, you probably already have some experience in troubleshooting, so I don't need to teach you the basics. If you replaced critical components like the power transistors, or the cores for T1, T3 or L2, this may cause problems. The power transistors MUST maintain their beta up to at least 8A, otherwise they will cut short the conduction cycles when the load increases. If you happen to replace those transistors by some which have very low beta, the power supply may fail to start at all.
If you replaced the magnetic cores and did a bad choice, the results can be quite dramatic. If T1 or L2 saturates, it can cause the power transistors to explode before the fuse has a chance to open. The light bulb in the AC line will avoid damage in this case, so by all means use that bulb for first testing!
Another typical error is reversing the phase of some winding in T3. If you get one of the 8-turn windings reversed, the results will be explosive unless you have the light bulb in series. If you reversed the 1-turn winding, the power supply will simply not start.
C1, 2 : 100nF, 250VAC polypropylene (RS 190-8539)
C3 : 680uF, 450V electrolytic
C4, 5, 6, 7, 8, 9, 10, 11 : 470nF, 630V polypropylene
C12, 13 : 1uF, 50V ceramic multilayer (RS 126-067)
C14 : 3.3nF, 1.6kV polypropylene
C15, 16 : 10nF, 250VAC polypropylene (RS 190-8472)
C17, 18, 19, 20, 21, 22 : 1000uF, 25V low ESR electrolytic (RS 105-997)
C23, 24 : 2200uF, 16V low ESR electrolytic (RS105-947)
C25, 26, 27, 28, 29, 30 : 100nF, 50V ceramic
C31 : 470nF, 50V ceramic multilayer
C32 : 22uF, 50V electrolytic
C33 : 10uF, 50V electrolytic
C34 : 1uF, 50V electrolytic
C35 : 33nF, 50V polyester
C36 : 4.7nF, 50V polyester
C37 : 330nF, 50V polyester or ceramic multilayer
C38 : 100uF, 10V electrolytic
D1 : Rectifier bridge, 1kV, 8A. GBPC810 or similiar.
D2, 4, 17 : Ultrafast diode, 1kV, 1A. UF4007 or similiar. Lower
voltage (down to 100V) is acceptable.
D3, 5 : Ultrafast diode 1kV, 3A. UF5408 or similiar.
D6, 7, 8, 9 : Dual Schottky diode, 100V, 30A total. PBYR30100CT
or similiar. Single diode would also be suitable.
D10, 11, 12, 13, 14, 15, 16, 18 : 1N4148 switching diode
FB1, 2 : Amidon FB-73-801 ferrite bead, slipped over wire.
FB3..14 : Amidon FB-73-2401 ferrite beads, slipped six each
over the two 13.8VDC output cables.
L1 : Common mode choke, 8mH each winding, 6A.
I used junk box specimen. RS 288-159 is suitable.
L2: : 20uH, 60A choke. 15 turns on Amidon T-157-26
toroid. Wound with ten #16 enameled wires
L3: : 5uH (uncritical), 60A choke. 10 turns on ferrite solenoid,
10mm diameter, 50mm long. Wound with two #11
wires in parallel.
LED1 : Dual LED, green-red, common cathode
M1 : 12V 5W brushless DC fan, 120 x 120 x 25mm
NTC1, 2 : Inrush current limiter, 2.5R cold resistance (RS 191-2005)
P1 : CEE-22 male connector with integrated fuse holder
and EMI filter, 250VAC, 6A, (RS 210-291)
Q1, 2 : High voltage switching transistor, BUH1215 or similiar.
Must resist at least 400Vceo , and maintain a
beta of over 12 at a current level of 8A. (RS 859-874)
Q3, 4 : BC639-16 transistor. Must resist 100V and 0.5A.
Q5 : BD683 darlington transistor
R1, 5 : 10R, 5W low inductance preferred
R2, 6 : 180kR, 0.5W carbon
R3, 7, 19 : 1R, 1W carbon
R4, 8 : 2,7kR, 0.25W carbon
R9 : 47R, 5W low inductance preferred
R10, 11 : 1.8R, 2W low inductance preferred
R12 : 180R, 0.5W carbon
R13 : 3.3kR, 0.25W carbon
R14 : 1.5kR, 0.5W carbon
R15, 16 : 3.9kR, 0.25W carbon
R17, 18, 32, 33, 36, 38 : 1kR, 0.25W carbon
R20 : 22R, 0.5W carbon
R21, 22, 23, 24 : 4.7kR, 0.25W carbon
R25, 27, 29 : 22kR, 0.25W carbon
R26 : 4.3kR, 0.25W carbon
R28 : 13kR, 0.25W carbon
R30 : 12kR, 0.25W carbon
R31 : 10kR, 0.25W carbon
R34 : 1MR, 0.25W carbon
R35, 37 : 27kR, 0.25W carbon
R39 : 33R, 2W carbon
SW1 : 2-pole power switch, 250VAC, 10A
T1 : Primary 15 turns, secondary 2+2 turns. Wound with
copper foil and mylar sheet. Uses four Amidon
EA-77-625 ferrite E-cores (8 halves). Equivalents
include Thomson GER42x21x15A, Phillips 768E608,
TDK EE42/42/15. See text for winding instructions.
T2 : Secondary is 100+100 turns #36 enamel wire. Primary
is one turn #15 plastic insulated cable, wound on
secondary. Wound on Amidon EE24-25-B bobbin. Uses an
Amidon EA-77-250 core. Equivalents are Thomson
GER25x10x6, Phillips 812E25Q, TDK EE25/19.
T3 : Control winding is 26+26 turns #27 enamel wire.
Base windings are 8 turns #20 each. Collector winding
is one turn #15 plastic insulated cable. Bobbin and
core like T2. See text.
U1 : Pulse width modulator IC, LM3524, SG3524, UC3524 or
U2 : Quad single supply operational amplifier, LM324
U3 : 5V voltage reference, LM336Z-5.0 or similiar.
VR1, 2, 3 : 1kR PCB mounted trimpot
Printed circuit board
Two pole screw terminal for 40A
6 ceramic insulators for the power transistors and Schottky diodes
6 M3 nylon screws and nuts
3mm and 1mm aluminum sheet, 10x10x1mm aluminum angle stock, some wire mesh,
4 rubber feet, and assorted hardware for building the box.
A lot of enthusiasm!
13.8V, 40A Switching Power Supply
| Accurate LC Meter
Build your own Accurate LC Meter (Capacitance Inductance Meter) and start making your own coils and inductors. This LC Meter allows to measure incredibly small inductances making it perfect tool for making all types of RF coils and inductors. LC Meter can measure inductances starting from 10nH - 1000nH, 1uH - 1000uH, 1mH - 100mH and capacitances from 0.1pF up to 900nF. The circuit includes an auto ranging as well as reset switch and produces very accurate and stable readings.
|PIC Volt Ampere Meter
Volt Ampere Meter measures voltage of 0-70V or 0-500V with 100mV resolution and current consumption 0-10A or more with 10mA resolution. The meter is a perfect addition to any power supply, battery chargers and other electronic projects where voltage and current must be monitored. The meter uses PIC16F876A microcontroller with 16x2 backlighted LCD.
|60MHz Frequency Meter / Counter
Frequency Meter / Counter measures frequency from 10Hz to 60MHz with 10Hz resolution. It is a very useful bench test equipment for testing and finding out the frequency of various devices with unknown frequency such as oscillators, radio receivers, transmitters, function generators, crystals, etc.
|1Hz - 2MHz XR2206 Function Generator
1Hz - 2MHz XR2206 Function Generator produces high quality sine, square and triangle waveforms of high-stability and accuracy. The output waveforms can be both amplitude and frequency modulated. Output of 1Hz - 2MHz XR2206 Function Generator can be connected directly to 60MHz Counter for setting precise frequency output.
|BA1404 HI-FI Stereo FM Transmitter
Be "On Air" with your own radio station! BA1404 HI-FI Stereo FM Transmitter broadcasts high quality stereo signal in 88MHz - 108MHz FM band. It can be connected to any type of stereo audio source such as iPod, Computer, Laptop, CD Player, Walkman, Television, Satellite Receiver, Tape Deck or other stereo system to transmit stereo sound with excellent clarity throughout your home, office, yard or camp ground.
|USB IO Board
USB IO Board is a tiny spectacular little development board / parallel port replacement featuring PIC18F2455/PIC18F2550 microcontroller. USB IO Board is compatible with Windows / Mac OSX / Linux computers. When attached to Windows IO board will show up as RS232 COM port. You can control 16 individual microcontroller I/O pins by sending simple serial commands. USB IO Board is self-powered by USB port and can provide up to 500mA for electronic projects. USB IO Board is breadboard compatible.
|ESR Meter / Capacitance / Inductance / Transistor Tester Kit
ESR Meter kit is an amazing multimeter that measures ESR values, capacitance (100pF - 20,000uF), inductance, resistance (0.1 Ohm - 20 MOhm), tests many different types of transistors such as NPN, PNP, FETs, MOSFETs, Thyristors, SCRs, Triacs and many types of diodes. It also analyzes transistor's characteristics such as voltage and gain. It is an irreplaceable tool for troubleshooting and repairing electronic equipment by determining performance and health of electrolytic capacitors. Unlike other ESR Meters that only measure ESR value this one measures capacitor's ESR value as well as its capacitance all at the same time.
|Audiophile Headphone Amplifier Kit
Audiophile headphone amplifier kit includes high quality audio grade components such as Burr Brown OPA2134 opamp, ALPS volume control potentiometer, Ti TLE2426 rail splitter, Ultra-Low ESR 220uF/25V Panasonic FM filtering capacitors, High quality WIMA input and decoupling capacitors and Vishay Dale resistors. 8-DIP machined IC socket allows to swap OPA2134 with many other dual opamp chips such as OPA2132, OPA2227, OPA2228, dual OPA132, OPA627, etc. Headphone amplifier is small enough to fit in Altoids tin box, and thanks to low power consumption may be supplied from a single 9V battery.
|Arduino Prototype Kit
Arduino Prototype is a spectacular development board fully compatible with Arduino Pro. It's breadboard compatible so it can be plugged into a breadboard for quick prototyping, and it has VCC & GND power pins available on both sides of PCB. It's small, power efficient, yet customizable through onboard 2 x 7 perfboard that can be used for connecting various sensors and connectors. Arduino Prototype uses all standard through-hole components for easy construction, two of which are hidden underneath IC socket. Board features 28-PIN DIP IC socket, user replaceable ATmega328 microcontroller flashed with Arduino bootloader, 16MHz crystal resonator and a reset switch. It has 14 digital input/output pins (0-13) of which 6 can be used as PWM outputs and 6 analog inputs (A0-A5). Arduino sketches are uploaded through any USB-Serial adapter connected to 6-PIN ICSP female header. Board is supplied by 2-5V voltage and may be powered by a battery such as Lithium Ion cell, two AA cells, external power supply or USB power adapter.
|200m 4-Channel 433MHz Wireless RF Remote Control
Having the ability to control various appliances inside or outside of your house wirelessly is a huge convenience, and can make your life much easier and fun. RF remote control provides long range of up to 200m / 650ft and can find many uses for controlling different devices, and it works even through the walls. You can control lights, fans, AC system, computer, printer, amplifier, robots, garage door, security systems, motor-driven curtains, motorized window blinds, door locks, sprinklers, motorized projection screens and anything else you can think of.
