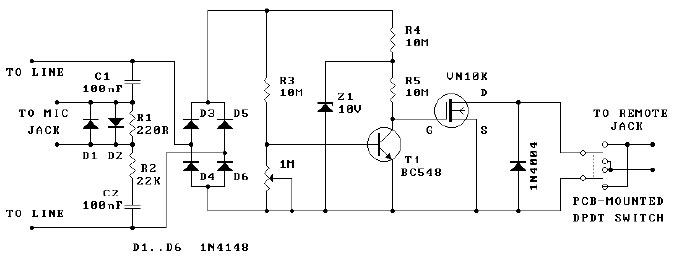

This circuit will allow you to record both sides of your
telephone conversations for future reference. For commercial orders placed over the phone such a recording device is
This circuit allows you to construct a electronic switch which will automatically turn on your tape recorder when you pick up the handset of your telephone.
Note that your tape recorder must have both a MIC socket
and a REMOTE socket on it so that circuit can plug into
the recorder and control it. Cheaper tape recorders tend to
leave off these external plug sockets (although if you
know where to look they may still be accessed inside the
tape unit on the circuit board.) Telephone recorder switch is designed to work for the newer 1.5V and 3V
tape recorders as well as the usual 6V or 12V ones.
The voltage of the normal telephone line is between 40 to
60 volts (depending on country and telephone system.)
When you pick up the handset of the telephone the
voltage falls to between 6 and 12 volts. It is this drop in
voltage which is used to control the tape recorder through
the REMOTE connector. When the line voltage is high the
base of the BC548 is pulled high so the transistor is turned
on. This pulls the gate of the FET down to less than 1 volt.
This shuts off the FET. (N channel enhancement mode
FET's need drain bias positive and a positive gate to turn
on.) When the line voltage falls (that is, the handpiece is
picked up) the BC548 must turn off; adjust the trimpot if it
does not. So the FET gate potential rises to the 10 volts
set by the zener diode. This turns the FET on to high
efficiency conduction mode.
